Z86C9620VSC IC MCU 8BIT ROMLESS 68PLCC Zilog

Name: Z86C9620VSC IC MCU 8BIT ROMLESS 68PLCC Zilog
Brand: Zilog
Price: 1 USD

Brand Name : Zilog

Model Number : Z86C9620VSC

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Core Processor : 8-Bit

Core Size : 20MHz

Speed : EBI/EMI, UART/USART

Connectivity : -

Peripherals : 52

Number of I/O : -

Program Memory Size : ROMless

Program Memory Type : -

EEPROM Size : 236 x 8

RAM Size : 3V ~ 5.5V

Voltage - Supply (Vcc/Vdd) : -

Data Converters : Internal

Oscillator Type : 0°C ~ 70°C (TA)

Operating Temperature : Surface Mount

Mounting Type : 68-LCC (J-Lead)

Package / Case : -

Contact Now

Product Details

GENERAL DESCRIPTION

The Z86C61/62/96 microcontroller is a member of the Z8 single-chip microcontroller family with 16 Kbytes of ROM and 256 bytes of RAM. The Z86C96 is ROMless. The Z86C61 is offered in 40-pin DIP and 44-pin PLCC style packages, however, the ROMless pin option is available on the 44-pin version only. The Z86C62/96 is offered in 64-pin DIP and 68-pin PLCC style packages. A ROMless pin option enables these MCUs to address both external memory and preprogrammed ROM, making them well suited for high-volume applications or where code flexibil ity is required.

FEATURES

■ 8-Bit CMOS Microcontroller
■ 40-Pin DIP, 44-Pin PLCC, 64-Pin DIP, or 68-Pin PLCC Package
■ 32 Input/Output Lines (Z86C61 Only)
■ 52 Input/Output Lines (Z86C62 and Z86C96)
■ 3.0V to 5.5V Operating Range
■ Low Power Consumption: 200 mW (max)
■ Fast Instruction Pointer: 0.75 µs @ 16 MHz
■ Two Standby Modes: STOP and HALT
■ Full-Duplex UART
■ All Digital Inputs are TTL Levels
■ Auto Latches
■ RAM and ROM Protect
■ 16 Kbytes of ROM
■ 256 Bytes of RAM
■ Two Programmable 8-Bit Counter/Timers, Each with 6-Bit Programmable Prescaler
■ Six Vectored, Priority Interrupts from Eight Different Sources
■ Clock Speeds: 16 and 20 MHz
■ On-Chip Oscillator that Accepts a Crystal, Ceramic Resonator, LC, or External Clock Drive

Specifications

Attribute	Attribute Value
Manufacturer	Zilog
Product Category	Microcontrollers
Series	Z8R
Packaging	Tube
Package-Case	68-LCC (J-Lead)
Operating-Temperature	0°C ~ 70°C (TA)
Supplier-Device-Package	*
Number-of-I-O	52 I/O
Speed	20MHz
EEPROM-Size	-
Core-Processor	Z8
RAM-Size	236 x 8
Program Memory	ROMless
Peripherals	-
Connectivity	EBI/EMI, UART/USART
Voltage-Supply-Vcc-Vdd	3 V ~ 5.5 V
Core-Size	8-Bit
Program-Memory-Size	-
Data-Converters	-
Oscillator-Type	Internal

Descriptions

Z8 Z8? Microcontroller IC 8-Bit 20MHz ROMless

China Z86C9620VSC IC MCU 8BIT ROMLESS 68PLCC Zilog wholesale

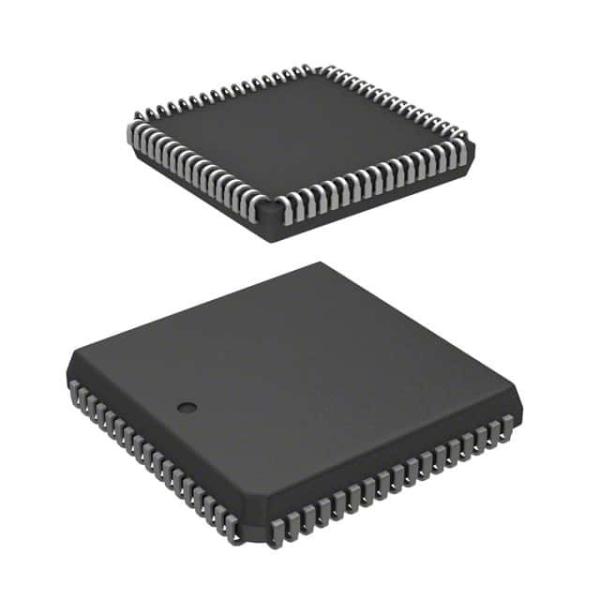

Z86C9620VSC IC MCU 8BIT ROMLESS 68PLCC Zilog Images
