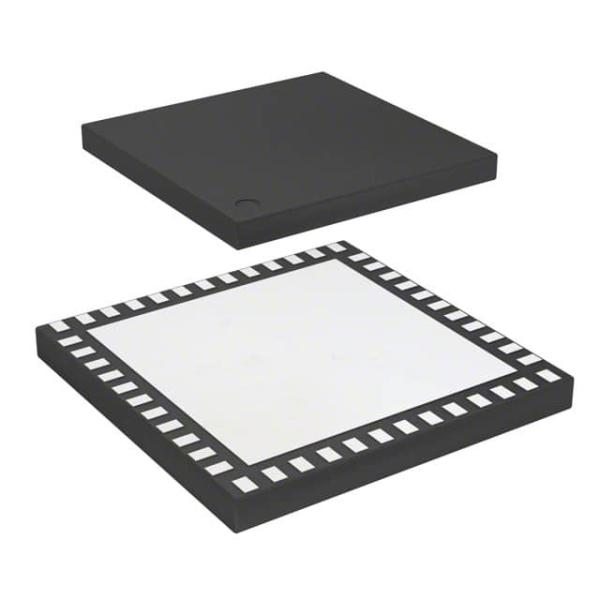

ATUC64L4U-D3HT IC MCU 32BIT 64KB FLASH 48TLLGA Microchip Technology

Name: ATUC64L4UD3HT IC MCU 32BIT 64KB FLASH 48TLLGA Microchip Technology
Brand: Microchip Technology
Price: 1 USD

Brand Name : Microchip Technology

Model Number : ATUC64L4U-D3HT

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Core Processor : 32-Bit Single-Core

Core Size : 50MHz

Speed : I²C, SPI, UART/USART, USB

Connectivity : Brown-out Detect/Reset, DMA, POR, PWM, WDT

Peripherals : 36

Number of I/O : 64KB (64K x 8)

Program Memory Size : FLASH

Program Memory Type : -

EEPROM Size : 16K x 8

RAM Size : 1.62V ~ 3.6V

Voltage - Supply (Vcc/Vdd) : A/D 8x12b

Data Converters : Internal

Oscillator Type : -40°C ~ 85°C (TA)

Operating Temperature : Surface Mount

Mounting Type : 48-UFLGA Exposed Pad

Package / Case : 48-TLLGA (5.5x5.5)

Contact Now

Product Details

Introduction

The RZ600 kit is an evaluation kit for the Atmel AT86RF family of radio frequency devices. The family contains the two 2.4GHz device AT86RF230 and AT86RF231. These are highly acclaimed networking devices within low power personal area networks. In addition to this the world’s first IEEE 802.15.4 enabled sub gigahertz radio is provided – the AT86RF212. With the kit you also receive two AVR UC3 based host nodes that can be used to evaluate a point to point network connection. That being said; the RZ600 radio boards sport an Atmel standardized 10-pin connector that will enable the RF boards to be connected to any AVR microcontroller. A wide range of the standard Atmel AVR design tools have the host end of the standardized 10-pin connector – so as a customer you will be able to evaluate Atmel radio transceivers in virtually any application segment.
The RZ600 kit enables RF4CE, IEEE 802.15.4, ZigBee® and 6lowPAN network technologies to run on the full Atmel portfolio of low power AVR microcontrollers.

Features

• Contains the full selection of AT86RF family radio transceivers.
• Covers the 2.4GHz ISM band and 700, 800 and 900MHz frequency bands.
• In total 3 pair of radio transceivers are available – one pair per radio transceiver.
• Two ATUC3A3256 based USB host boards are included
- Based on Atmel® AVR® UC core
- 80 Dhrystone MIPS and Draws Only 40 mA at 66 MHz
- Low, full and high speed USB compliant
- Ideal for PC to RF gateways, packet sniffers and network commissioning tools
• On board ID chip for easy IEEE MAC address
• Stub antennas for all frequency bands

Specifications

Attribute	Attribute Value
Manufacturer	Intel / Altera
Product Category	Microcontrollers
Series	AVR®32 UC3 L
Product	MCU
Packaging	Tray Alternate Packaging
Tradename	UC3
Package-Case	48-UFLGA Exposed Pad
Operating-Temperature	-40°C ~ 85°C (TA)
Supplier-Device-Package	48-TLLGA (5.5x5.5)
Number-of-I-O	36 I/O
Speed	50MHz
EEPROM-Size	-
Core-Processor	AVR
RAM-Size	16K x 8
Program Memory	FLASH
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Connectivity	I2C, SPI, UART/USART, USB
Voltage-Supply-Vcc-Vdd	1.62 V ~ 3.6 V
Core-Size	32-Bit
Program-Memory-Size	64KB (64K x 8)
Data-Converters	A/D 8x12b
Oscillator-Type	Internal
Core	AVR
Processor-Series	ATUC
Data-Bus-Width	32 bit

Descriptions

MCU 32-bit ATUC AVR RISC 64KB Flash 1.8V 48-Pin TLLGA Tray

32-bit Microcontrollers - MCU UC3L-64KB Fl 48TLLGA 85C Grn
